| In early 1937 Kawasaki was instructed
by the Imperial Japanese army to initiate
the design and development of a
twin-engine fighter that would be suitable
for long-range operations over
the Pacific. The concept derived from
army interest in developments taking
place in other countries, and particularly
in the Messerschmitt Bf 110. The

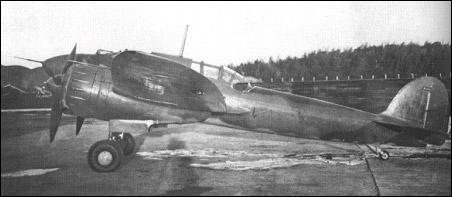

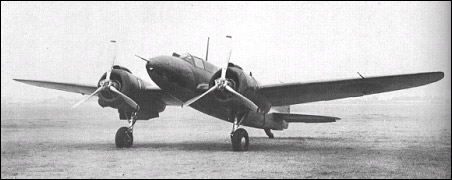

first Kawasaki Ki-45 Toryu (dragon killer)
prototype flew in 1939, a cantilever
mid-wing monoplane with retractable
tailwheel landing gear. A slender
fuselage provided enclosed accommodation
for two in tandem. Problems
followed with the engine installation,
and it was not until September 1941
that the Ki-45 KAIa entered production.
Armament of this initial series version
comprised one forward-firing 20mm cannon, two 12.7mm machine-guns in the nose, and a 7.92mm machine-gun on a flexible
mount in the rear cockpit; there was
also provision to carry two drop tanks
or two 250kg bombs on
underwing racks. The type entered
service in August 1942 but was first
used in combat during October 1942,
soon being allocated the Allied codename
'Nick'. The Ki-45 KAIa was
joined by a new version developed
especially for the ground-attack/antishipping
role, the Ki-45 KAIb. Standard armament comprised one 20mm
cannon in the nose, a forward-firing
37mm cannon in the fuselage, and one
rear-firing 7.92mm machine gun,
plus the underwing provision for
drop tanks or bombs; a number of
alternative weapon installations were
tried experimentally, including the use
of a 75mm cannon for attacks
on shipping.
The Ki-45 KAIa was, for its day,
heavily armed and proved effective
against the USAF's Consoldiated B-24
Liberators and, when these bombers
were used more extensively for night
operations, the Ki-45 was adapted to
attack them. Thus the night-fighting
capability of the type was discovered,
leading to development of the Ki-45
KAIc night-fighter, which proved to be
one of the most successful Japanese
aircraft in this category. Ki-45 Toryus
remained in service until the end of the
Pacific war, production totalling 1,701
including prototypes, being used for
the defence of Tokyo, and in the Manchuria,
Burma and Sumatra areas of
operations.
Ki-45 KAIc night fighter
Constant development frustrations delayed
introduction into service of the
Imperial Japanese Army's Kawasaki
Ki-45 Toryu (dragon killer) until August
1942, its design having been initiated
five years earlier, and it was not until
1944 that the night-fighter version, the
Ki-45 KAIc, became operational as the
only army night-fighter of the war. Retaining
the two 805kW Mitsubishi
Ha-102 radials of the previous
Ki-45 KAIb heavy day fighter (an aircraft
whose role was akin to that of the
German Zerstorer), the Ki-45 KAIc was
armed with a single forward-firing
semi-automatic 37mm Type 98 cannon
in a fairing under the fuselage, two
oblique/upward-firing 20mm Ho-5
cannon in the centre fuselage, and a
single hand-held machine-gun in the
rear cockpit. It had been intended to fit
airborne radar in the nose, and therefore
no nose guns were included;
however, production difficulties
seriously delayed this equipment and
it did not enter service, although a
single aircraft flew with centimetric
radar shortly before the end of the war.
Production of the Ki-45 KAIc got
underway at Kawasaki's Akashi plant
in March 1944, the first aircraft being
completed the following month. On 15
June American Boeing B-29s of XX
Bomber Command launched their first
raid on the Japanese homeland, and
were intercepted by eight Toryus
whose pilots shot down eight of the big
bombers. At that time about 40 Ki-45
KAIc fighters had been completed,
and the aircraft went on to serve with
the 4th Sentai at Usuki in the Oita prefecture,
the 5th Sentai at Usuki and
Komachi in the Aichi prefecture, the
53rd Sentai at Matsudo in the Chiba
prefecture, and the 70th Sentai at
Kashiwa. Toryus shared the night defence
of Japan with the navy's J1N1-S
and Yokosuka P1Y1-S, and were probably
the most successful in action
against the massive American raids in
the last six months of the war; the 4th
Sentai alone was credited with 150
kills, of which 26 were gained by one
pilot, Captain Isamu Kashiide, all despite
the lack of any AI radar. Away
from the homeland Ki-45 KAIc nightfighters
also served with the 45th Sentai
in the Philippines and New Guinea
late in 1944, and with the 71st Dokuritsu
Hiko Chutai at Singapore in August
1945. Production of the Ki-45 KAIc
reached 477 aircraft before being terminated
in December 1944. The type
was codenamed 'Nick' by the Allies.
 | A three-view drawing (752 x 941) |
| MODEL | Ki-45 KAIc |
| CREW | 2 |
| ENGINE | 2 x Mitsubishi Ha-102, 810kW |
| WEIGHTS |
| Take-off weight | 5500 kg | 12125 lb |
| Empty weight | 4000 kg | 8819 lb |
| DIMENSIONS |
| Wingspan | 15.02 m | 49 ft 3 in |
| Length | 11 m | 36 ft 1 in |
| Height | 3.7 m | 12 ft 2 in |
| Wing area | 32 m2 | 344.44 sq ft |
| PERFORMANCE |
| Max. speed | 540 km/h | 336 mph |
| Ceiling | 10000 m | 32800 ft |
| Range | 2000 km | 1243 miles |
| ARMAMENT | 1 x 37mm cannon, 2 x 20mm cannons, 1 x 7.92mm machine-guns, 2 x 250kg bombs |
