Ilyushin IL-20

1948


EXPERIMENTAL BOMBER	Virtual Aircraft Museum / USSR / Russia / Ilyushin

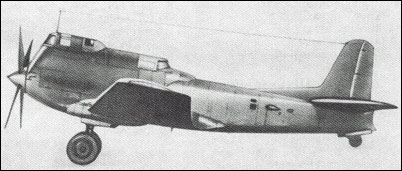

This armored ground attack aircraft was presented at State Trials in 1948, as a heavier 'supplement' type to the IL-10 (already in service) and IL-10M (ready for production). IL-20 differed from any other aircraft built before by its pilot's cockpit, located above the engine at extreme nose and provided unrestricted forward view. Engine and pilot's cockpit had common armour 'shell'. Landing gear (including the tail wheel) - retractable.

Four vertically movable 23mm NS-23 cannons were installed in the wing out of propeller arc. IL-20 could carry 1190kg of bombs on external hardpoints (up to 500kg each) and unguided RS family rockets.

Gunner-operator occupied separate cockpit. He operated a remotely-controlled turret with single NS-23 cannon. Defensive weapons included DAG-10 dispenser for 10 aircraft grenades AG-2.

Flight tests proved good performance of the aircraft (similar to those of lighter IL-10M, thanks to more powerful engine). But age of piston engine aircraft was fading, and IL-20 was not accepted for series production.

3-View

A three-view drawing (800 x 554)

Specification

ENGINE	1 x AM-47F, 2700kW
WEIGHTS
Take-off weight	9820 kg	21650 lb
Empty weight	7500 kg	16535 lb
DIMENSIONS
Wingspan	17.0 m	56 ft 9 in
Length	12.59 m	41 ft 4 in
Wing area	44.0 m²	473.61 sq ft
PERFORMANCE
Max. speed	515 km/h	320 mph
Ceiling	7750 m	25450 ft
Range	1180 km	733 miles
ARMAMENT	3-5 x 23mm cannon, 1190kg of bombs
