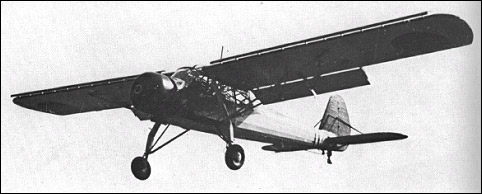

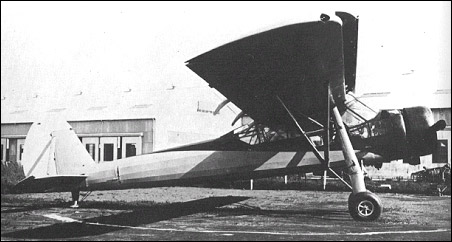

| The first prototype flew in May 1941.
| MODEL | Ki-76 |
| CREW | 2 |
| ENGINE | 1 x Hitachi Ha-42, 230kW |
| WEIGHTS |
| Take-off weight | 1530-1620 kg | 3373 - 3572 lb |
| Empty weight | 1110 kg | 2447 lb |
| DIMENSIONS |
| Wingspan | 15 m | 49 ft 3 in |
| Length | 9.56 m | 31 ft 4 in |
| Height | 2.9 m | 10 ft 6 in |
| Wing area | 29.4 m2 | 316.46 sq ft |
| PERFORMANCE |
| Max. speed | 178 km/h | 111 mph |
| Ceiling | 5630 m | 18450 ft |
| Range | 750 km | 466 miles |
| ARMAMENT | 1 x 7.7mm machine-guns |
 | A three-view drawing (750 x 886) |
| Barry, 03.06.2016 13:56 Similar to but not the same as the Fiesler Storch, the Kokusai Ki-76 featured Fowler flaps in place of the slotted flaps on the German machine. Some 937 were produced and proved successful when measured against the Fi156. Finally retired in 1945 from IJA service some were used after the war by the Royal Thai Air Force. In addition to the armament noted they were equipped with 2 x 60 lb depth charges when flying from the escort carrier "Akitsu Maru". reply |
| Martijn., 03.12.2015 17:29 Looks like and developted from the fieseler 156 storch , I LOVE IT . Thanks for posting , greetings . reply |
|
