| The Horton Ho IX twin-jet tailless
fighter-bomber, of which two prototypes
were flown before the end of
the war, was of extremely advanced
design, which benefited from considerable
experience gained by the
brothers Reimar and Walter Horten in
the development of flying-wing aircraft,
of which the majority were gliders.
Designed by Sonderkommando 9,
starting in 1942, the first prototype Ho
IX VI was found to be unable to
accommodate the two intended BMW
109-003-1 turbojets owing to an unforeseen
increase in engine diameter, and
it was therefore flown as a glider at
Oranienburg during the summer of

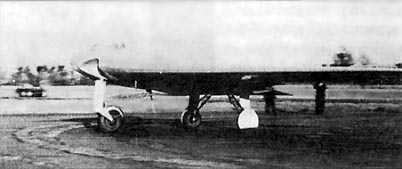

1944. The redesigned Ho IX V2 was
fitted with two Junkers 109-004B-1 turbojets
and flown successfully at Oranienburg,
demonstrating speeds of up
to 960km/h before it was
destroyed while making a single-engine
landing. Such promise encouraged the RLM to instruct Gothaer
Waggonfabrik to assume development
of the design, and a third prototype,
the Go 229 V3, was produced
with 1000kg thrust Jumo 109-
004C turbojets, but was prevented
from flying by the end of hostilities in
May 1945. Work had also started on the
two-seat Go 229 V4 and Go 229 V5
night-fighter prototypes, the Go 229 V6
armament test prototype, and the Go
229 V7 two-seat trainer, No progress
had been made on 20 pre-production
Go 229A-0 fighter-bombers, on order
at the end of the war, that were intended
to carry two 1000kg bombs and four 30mm MK 103 cannon.
| MODEL | Ho-IX V2 |
| CREW | 1 |
| ENGINE | 2 x 2 x Jumo-004, 900kg |
| WEIGHTS |
| Take-off weight | 6900 kg | 15212 lb |
| Empty weight | 4844 kg | 10679 lb |
| DIMENSIONS |
| Wingspan | 16.8 m | 55 ft 1 in |
| Length | 7.2 m | 24 ft 7 in |
| Height | 2.6 m | 9 ft 6 in |
| Wing area | 52.8 m2 | 568.33 sq ft |
| PERFORMANCE |
| Max. speed | 960 km/h | 597 mph |
 | A three-view drawing (1690 x 1130) |
