Fouga CM.100

Bob Kusterer please see Aerospatiale elsewhere on this site,as is the case sometimes aircraft are listed under manufacturers who have no input or real claim. See Douglas DC8 under McDonnell Douglas for example.

reply

Why isn't the Magister CM 170 listed? Many of these wonderful trainers were built and many countries used them. I got to ride with both the Belgian Red Devils and the French Patrouille de France when they were flying the Magister back in 1968.

reply

The Fouga CM.10 was an assault glider designed for the French Army shortly after World War II, capable of carrying 35 troops. It was a high-wing cantilever monoplane of conventional configuration with fixed tricycle undercarriage. Two examples were built for evaluation, but no purchase order ensued.

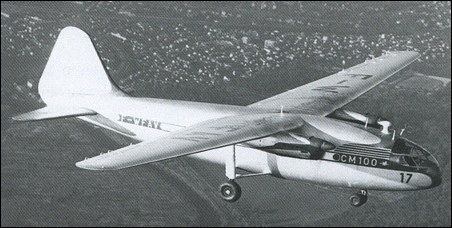

Undaunted, Fouga adapted the design as an airliner, adding two SNECMA 12S piston engines. A single prototype of this powered version, designated CM.100 (registration F-WFAV, pictured) the prototype was first flown on 19 January 1949, but no order resulted for this aircraft either. It was later tested with Turboméca Piméné turbojets mounted on the wingtips as the CM.101R

Specifications (CM.100)General characteristics
Crew: two pilots
Capacity: 14 passengers
Length: 17.90 m (58 ft 9 in)
Wingspan: 26.70 m (87 ft 7 in)
Wing area: 71.9 m2 (774 ft2)
Empty weight: 4,540 kg (10,010 lb)
Gross weight: 7,300 kg (16,100 lb)
Powerplant: 2 × SNECMA 12S-02, 433 kW (580 hp) each
Performance: Cruising speed: 245 km /h (153 mph)
Range: 500 km (312 miles)
