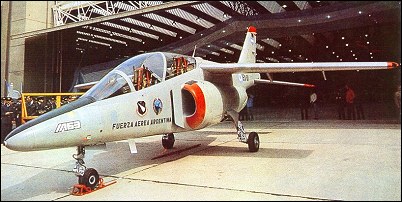

| Design of the FMA IA 63 Pampa basic jet trainer began in 1979, and a definitive configuration was selected in 1980 with technical assistance from Dornier. Construction of three flying prototypes was initiated in March 1981 and the first flew on 6 October 1984.
Basically a cantilever shoulder-wing monoplane, the fuselage incorporates a tricycle landing gear, a single turbofan engine and a pressurised cockpit with tandem seats for the pupil and instructor on zero/zero ejection seats. The Argentine air force ordered 100 Pampas and the first three aircraft were delivered in April 1988. In 1990, FMA teamed with LTV to offer a version of the IA 63, designated Pampa 2000, to compete for the Joint Services Primary Aircraft Training System (JPATS) search for a common US trainer.
External links
 | A three-view drawing (752 x 1282) |
| CREW | 2 |
| ENGINE | 1 x Garrett TFE 731-2-2N turbofan, 1588kg |
| WEIGHTS |
| Take-off weight | 5000 kg | 11023 lb |
| Empty weight | 2821 kg | 6219 lb |
| DIMENSIONS |
| Wingspan | 9.69 m | 32 ft 9 in |
| Length | 10.93 m | 36 ft 10 in |
| Height | 4.29 m | 14 ft 1 in |
| Wing area | 15.63 m2 | 168.24 sq ft |
| PERFORMANCE |
| Max. speed | 755 km/h | 469 mph |
| Ceiling | 12900 m | 42300 ft |
| Range w/max.fuel | 1500 km | 932 miles |
